Recent Advances in Simulation-based Inference for Gravitational Wave Data Analysis

Bo Liang, He Wang

Last updated on Feb 11, 2026 Gravitational-Wave Inference, Statistical Methods, Data Analysis

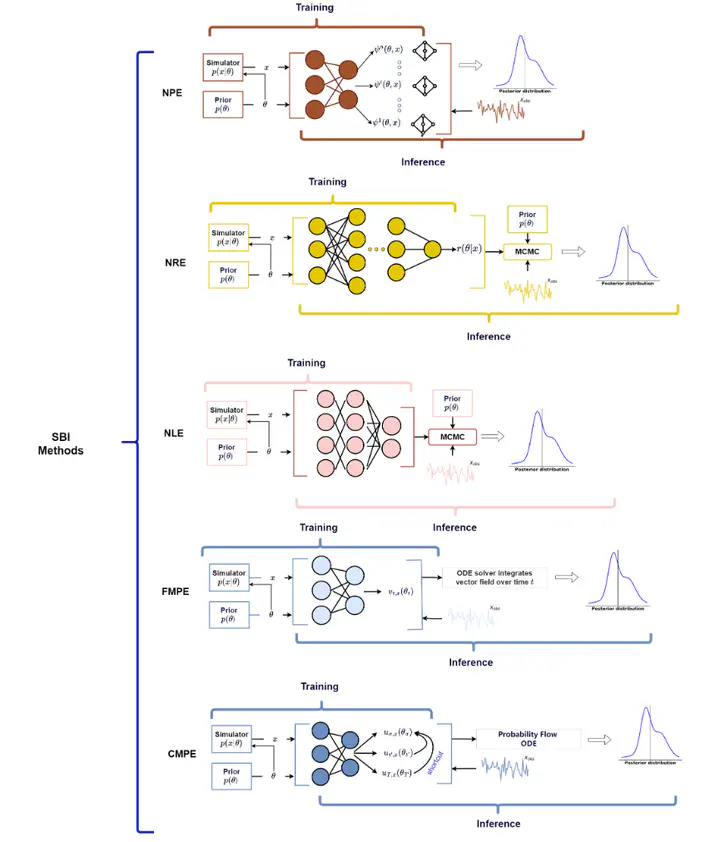

Overview of five SBI methods—NPE, NRE, NLE, FMPE, and CMPE—designed for efficient Bayesian parameter estimation.

Highlights

Comprehensive Survey: First comprehensive review of simulation-based inference (SBI) methods specifically tailored for gravitational wave data analysis, covering both theoretical foundations and practical applications.
Five Major SBI Frameworks: In-depth coverage of Neural Posterior Estimation (NPE), Neural Ratio Estimation (NRE), Neural Likelihood Estimation (NLE), Flow Matching Posterior Estimation (FMPE), and Consistency Model Posterior Estimation (CMPE).
Computational Efficiency: SBI methods demonstrate significant speed improvements over traditional Markov chain Monte Carlo approaches, enabling rapid parameter estimation critical for multi-messenger astronomy.
Diverse Applications: Explores applications across single-source analysis, overlapping signals, general relativity tests, and population studies - addressing the full spectrum of gravitational wave inference challenges.
Critical Assessment: Provides balanced evaluation of advantages and limitations, including model dependence, prior sensitivity, and validation requirements for widespread adoption.
Future Roadmap: Identifies key challenges and opportunities for advancing SBI methods in the era of next-generation gravitational wave detectors.

Key Contributions

1. Theoretical Foundations

The review provides systematic coverage of the mathematical and statistical principles underlying modern SBI methods:

Bayesian Inference Framework

Traditional approaches: Markov chain Monte Carlo (MCMC), nested sampling, Hamiltonian Monte Carlo
Computational bottlenecks in high-dimensional spaces with complex likelihood evaluations
Need for likelihood-free inference when analytical likelihoods are intractable

Neural Density Estimation

Normalizing flows for flexible posterior approximation
Conditional neural networks for amortized inference
Training strategies for stable and accurate density estimation

Simulation-Based Learning

Learning from forward simulations without explicit likelihood computation
Trade-offs between simulation budget and inference accuracy
Active learning strategies for efficient sample placement

2. Methodological Overview

Neural Posterior Estimation (NPE)

Direct learning of posterior distributions p(θ|x) using conditional normalizing flows
Amortized inference enabling rapid analysis across multiple observations
Applications to compact binary coalescence parameter estimation

Neural Ratio Estimation (NRE)

Learning likelihood ratios between competing hypotheses
Binary classification framework with theoretical guarantees
Effective for model comparison and hypothesis testing

Neural Likelihood Estimation (NLE)

Approximating likelihood functions for use in traditional samplers
Compatibility with existing Bayesian inference infrastructure
Useful when analytic likelihoods are unavailable but samplers are preferred

Flow Matching Posterior Estimation (FMPE)

Recent advance using continuous normalizing flows
Training via flow matching objective rather than maximum likelihood
Improved stability and scalability for high-dimensional problems

Consistency Model Posterior Estimation (CMPE)

Novel approach based on consistency models from generative modeling
Single-step or few-step inference with competitive accuracy
Potential for extremely fast posterior sampling

3. Gravitational Wave Applications

The review systematically examines SBI applications across diverse gravitational wave analysis scenarios:

Single-Source Parameter Estimation

Rapid inference for compact binary coalescences
Real-time parameter estimation for electromagnetic follow-up
Comparison with traditional LALInference and Bilby results

Overlapping Signal Analysis

Resolving closely spaced signals in time-frequency space
Joint inference for multiple simultaneous sources
Critical for future detectors with higher event rates

Testing General Relativity

Model-agnostic tests using parameterized deviations
Inference on alternative gravity theories
Population-level tests for systematic deviations

Population Studies

Hierarchical inference for astrophysical populations
Mass, spin, and redshift distributions
Selection effects and detection biases

Methodology

Training Pipeline

Data Generation

Forward simulation using waveform models (IMRPhenomD, SEOB, etc.)
Realistic detector noise from power spectral densities
Data quality cuts and glitch injection

Network Architecture

Conditional normalizing flows (coupling layers, splines, attention mechanisms)
Embedding networks for high-dimensional data compression
Hyperparameter optimization strategies

Training Strategies

Sequential training with adaptive proposal refinement
Active learning for efficient simulation budget allocation
Regularization techniques for stable training

Validation and Calibration

Accuracy Assessment

Comparison against traditional MCMC/nested sampling results
Coverage tests and posterior predictive checks
Systematic error analysis

Robustness Testing

Performance across parameter space ranges
Sensitivity to waveform systematics
Handling of detector glitches and non-Gaussian noise

Calibration

Ensuring well-calibrated posterior uncertainties
Addressing overconfidence in neural approximations
Calibration error metrics and diagnostics

Results

Performance Comparisons

Computational Speed

Order-of-magnitude speedup compared to traditional methods
Sub-second inference for compact binary parameters
Enables real-time analysis for electromagnetic counterpart searches

Accuracy Metrics

Comparable accuracy to gold-standard MCMC/nested sampling in controlled settings
Jensen-Shannon divergence and Kullback-Leibler divergence measurements
Maximum mean discrepancy for distribution comparison

Coverage and Calibration

Generally well-calibrated credible intervals when trained appropriately
Need for careful validation across full parameter ranges
Sensitivity to distribution shift between training and testing

Application-Specific Results

Binary Black Hole Analysis

Successful application to LIGO-Virgo catalog events (GWTC-1, GWTC-2, GWTC-3)
Accurate recovery of mass, spin, and distance parameters
Reduced computational cost enabling larger population studies

Multi-Source Scenarios

Demonstrated capability for overlapping signal resolution
Joint parameter estimation for closely spaced events
Scalability challenges for many simultaneous sources

Alternative Gravity Tests

Application to parameterized post-Einsteinian framework
Detection of simulated deviations from general relativity
Population-level constraints on modified gravity parameters

Limitations and Challenges

Model Dependence

Performance tied to accuracy of waveform models used in training
Sensitivity to waveform systematics and approximations
Need for retraining when waveform models are updated

Prior Sensitivity

SBI methods learn prior-weighted posteriors
Performance degradation when testing on out-of-distribution priors
Strategies for prior-robust inference under development

Validation Requirements

Extensive validation needed before scientific deployment
Challenge of comprehensive testing across vast parameter spaces
Need for standardized benchmarks and validation protocols

Impact

For Gravitational Wave Astronomy

Scientific Discovery Acceleration

Enables rapid parameter estimation for multi-messenger follow-up
Facilitates large-scale population studies with thousands of events
Supports real-time alert generation for electromagnetic observers

Method Development

Establishes machine learning as viable alternative to traditional inference
Motivates hybrid approaches combining SBI with traditional methods
Inspires new research directions in likelihood-free inference

Community Adoption Barriers

Need for demonstrated robustness before use in flagship publications
Integration with existing software infrastructure (LALSuite, Bilby)
Training requirements for gravitational wave researchers

For Statistical Inference

Likelihood-Free Methodology

Demonstrates practical success of simulation-based inference
Contributes to broader SBI literature beyond gravitational waves
Identifies domain-specific challenges informing general SBI development

Neural Density Estimation

Advances in normalizing flow architectures for scientific applications
Training strategies for high-dimensional conditional distributions
Calibration and validation methodologies

For Detector Commissioning

Next-Generation Detectors

Critical for managing computational demands of higher event rates
Necessary for Einstein Telescope and Cosmic Explorer analysis pipelines
Enables ambitious science goals requiring extensive parameter estimation

Space-Based Detectors

Particularly relevant for LISA, Taiji, TianQin data analysis
Overlapping signal resolution essential for space-based observations
Continuous data stream analysis requirements

Resources

Key References

Foundational SBI Papers

Papamakarios & Murray (2016): Neural Posterior Estimation with normalizing flows
Hermans et al. (2020): Neural Ratio Estimation and likelihood-free inference
Greenberg et al. (2019): Automatic posterior transformation for likelihood-free inference

Gravitational Wave Applications

Chua et al. (2022): Normalizing flows for gravitational wave inference
Dax et al. (2021): Real-time gravitational wave parameter estimation with neural networks
Green et al. (2020): Complete parameter inference for GW150914 using deep learning

Review Paper

Bo Liang & He Wang (2025): Recent Advances in Simulation-based Inference for Gravitational Wave Data Analysis
arXiv:2507.11192

Software and Tools

SBI Frameworks

sbi: PyTorch-based simulation-based inference library
nflows: Normalizing flows implementations for PyTorch
pyro: Probabilistic programming for deep learning

Gravitational Wave Tools

bilby: Bayesian inference library for gravitational waves
LALInference: Traditional MCMC inference for LIGO-Virgo
pycbc: Gravitational wave data analysis toolkit

Normalizing Flows for Gravitational Waves

He Wang et al.: Series of papers on normalizing flow inference for LISA, Taiji, and ground-based detectors
Applications to massive black hole binaries, extreme mass ratio inspirals, and compact binaries

Neural Networks for Gravitational Waves

WaveFormer: Transformer-based denoising
MFCNN: Multi-scale feature extraction for signal detection
Various deep learning approaches for signal processing

Future Directions

The review identifies several promising research directions:

Methodological Advances

Waveform-agnostic inference methods reducing model dependence
Prior-robust inference techniques for out-of-distribution generalization
Hybrid approaches combining neural and traditional methods
Uncertainty quantification for neural network predictions

Practical Applications

Real-time inference pipelines for low-latency alerts
Population inference at unprecedented scales
Multi-messenger parameter estimation workflows
Global fitting across all detector data
